Technical Data

• Power supply (USB: 5V, max. 500mA)
• USB 1.1, 2.0 & 3.0
• Spiral length handset cable 50 cm
• The system is addressable for 32 Bit and 64 Bit

System requirements

• MS Windows 8.1 or higher
• Standard USB-A Port (1.1. or higher)

Material description

• Stable casing made of flame retardant plastic PC ABS (Norm UL 94)

Item Number

• 106189

Features

General

• Plug&play installation

Acoustic & Volume

• Voice quality earpiece and microphone: Frequency range 100 Hz to 7.500 Hz according to ETSI ES 202 739 (wideband audio quality)
• Acoustic Shock Protection according to ETSI EG 202518
• Hearing Aid Compatibility (HAC) according to FCC Part 68.316 and 68.317
• Echo cancellation
• Ring tone signal via internal loudspeaker
• Volume is adjustable with plus and minus key

Additional functions through API/manufacturer

• Hook on/-off-function *
• Hook on/Hook off function in connection with MS Teams, Skype for Business and Unify OpenScape softclients **
• API-software available for the development of customers‘ specific applications

EU-conformity

• EU-conformity according to EU directives 2014/30/EU, 2011/65/EU and 2014/35/EU (CE label)

* These functions can be configured through API (Application Programming Interface)
** Skype for Business is expected to remain until 2024.

Scope of delivery

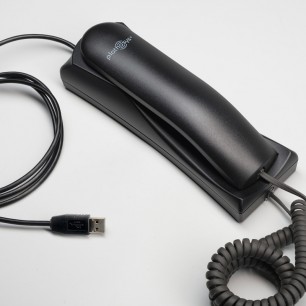

• Handset with spiral cable
• USB base station with USB connection cable
• Operating instructions
